Vacuum Lifter for Warehouse Order Picking

The ‘Cargo-Lift’ is a vacuum lifter attachment for easy mounting onto stacker trucks or forklifts, ideal for low and high level warehouse order picking.

The cargo-lift system mounts onto almost any type of forklift or stacker truck. The lifter attachment can be mounted by the customer or supplier. Also, the cargo-lift system can be dismounted and ‘parked’ in a customised stand when the truck is used as a normal forklift or stacker.

The Cargo-Lift attachment is designed according to the ISO/FEM standard and will fit class 1, class 2 and class 3 trucks.

The Cargo-Lift system is supplied complete with vacuum pump, suction pad and all the necessary parts for connection to the forklift truck.

·         Lifting capacity: 50 kg

·         Reach:   2.500 mm

·         Lifting height: ~1500 mm from pallet level

·         Total height  ~2750 mm from floor level

·         Working area: Up to 180º

·         Power connection:  24 Volt, 48 Volt or 80 Volt DC

·         Various types of suction pads/tools are available, depending on the items to be lifted.

·         Customised stand for “parking” the Cargo Lift, included.

The Vacuum Lifting System in combination with an electric stacker truck or forklift makes work considerably easier and at the same time prevents back injuries.

For more information on warehouse order picking with the Cargo Lift System or any materials handling enquiries contact Packline no +44 (0)1202 307700 or visit the website Packline Materials Handling

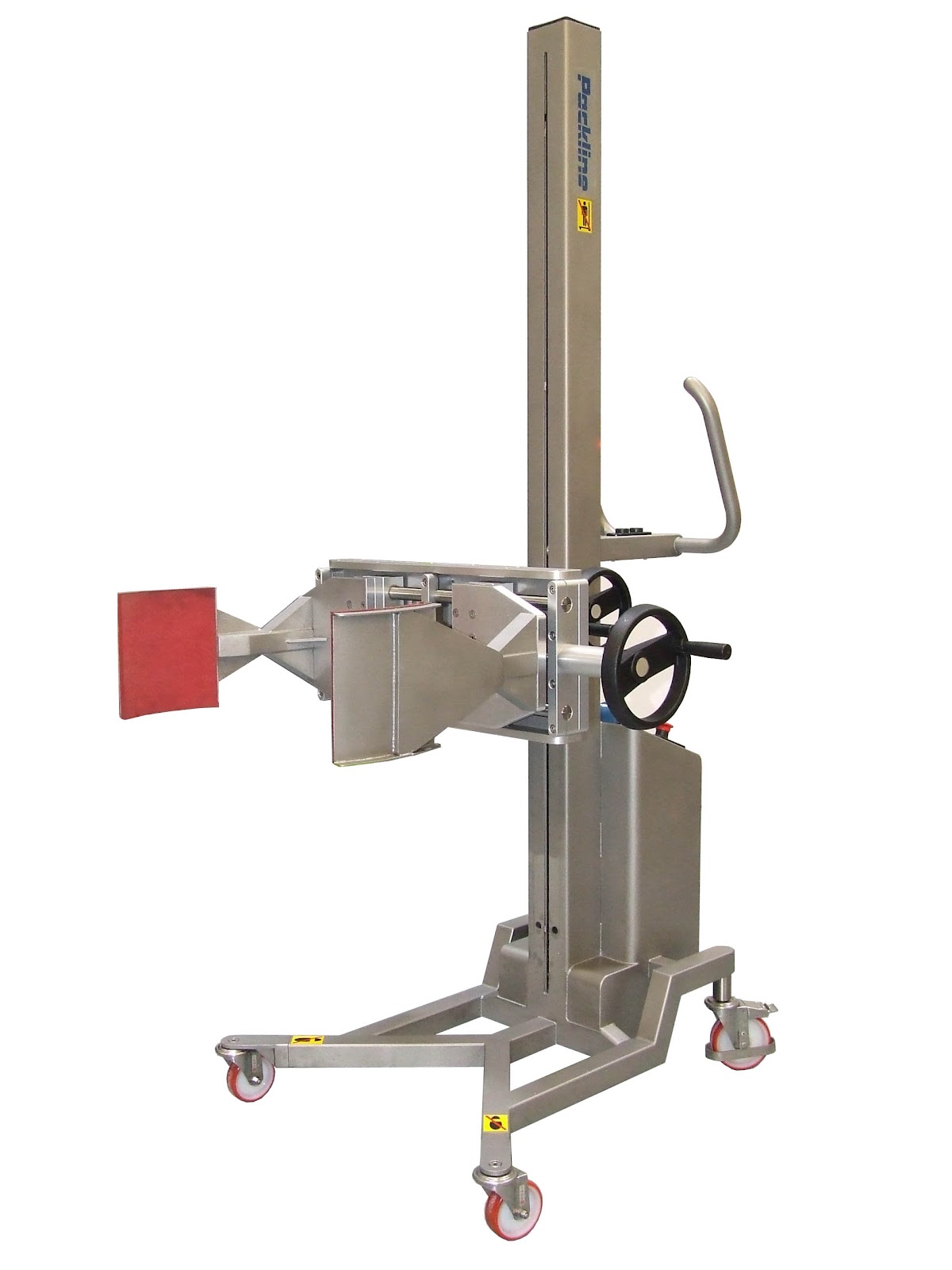

Low Profile Clamp Attachment for handling drums or rolls of material

The low profile clamp attachment for handling drums and rolls of material is designed for situations where access to the drums or rolls is restricted, along narrow production lines or where drums are closely stacked on pallets.

The arms of the low profile clamp are designed to be narrow which is ideal for accessing rolls that are closely packed together or where access to the rolls is restricted.

The low profile clamp can be used with Packline’s standard roll or drum handling lifters with the unique ‘X-Frame’ designed to access the corner of pallets, when lifting drums or rolls of film or packaging material.

Specifications:

·         Available as manual or geared rotation

·         Load capacities up to 300kg are possible.

·         Suitable for load diameters of up to 850mm as standard.

·         Built in slip torque mechanism to ensure correct gripping pressure is applied preventing over tightening and damage to load.

·         Constructed mainly from stainless steel also aluminium, steel, brass and acetal, and materials suitable for food and pharmaceutical environments.

For further information on the low profile clamp attachment or the full range of materials handling equipment contact Packline Materials Handling on +44 (0) 1202 307700 or visit the website www.packline.co.uk.
