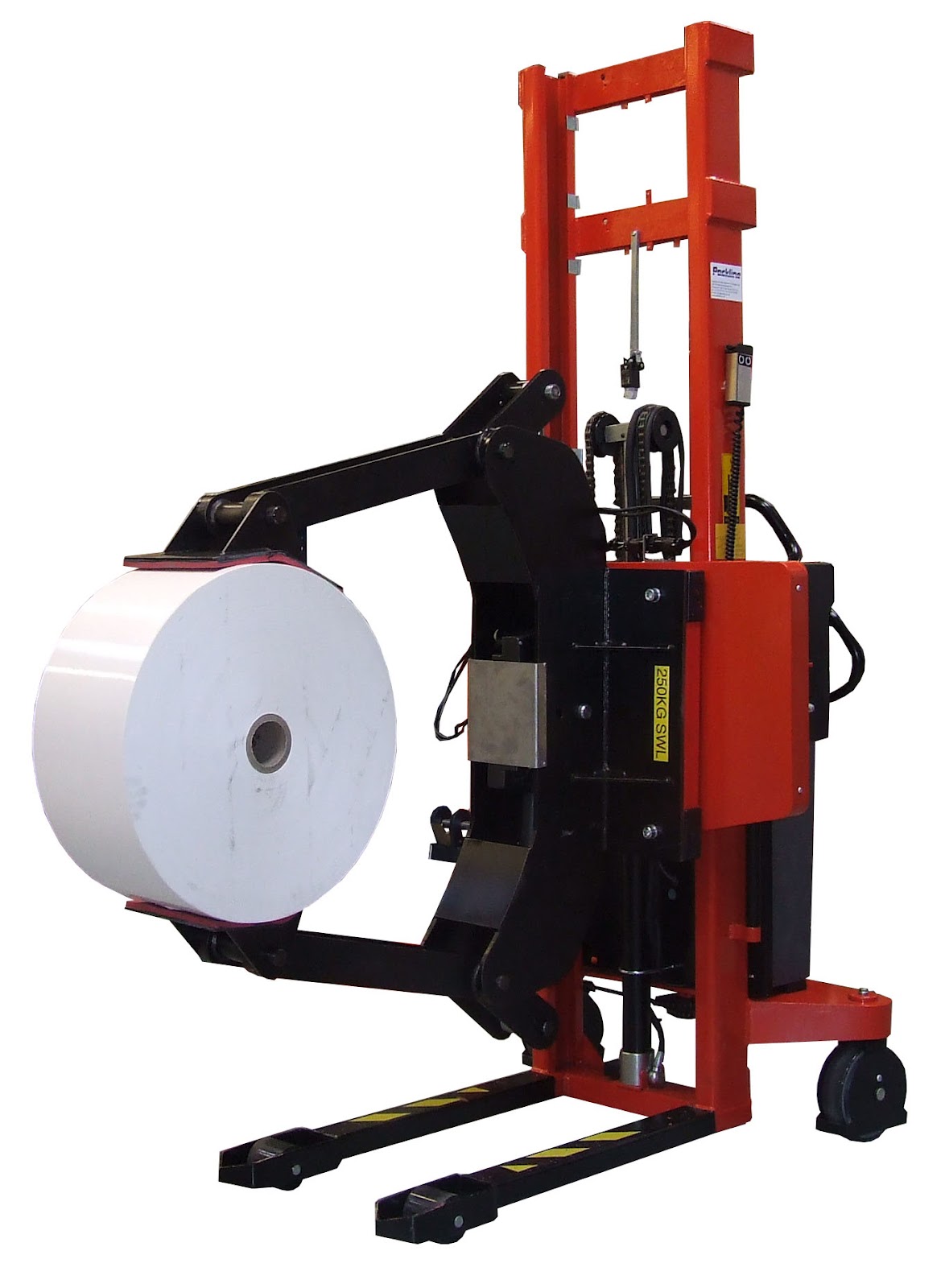

Heavy Duty Reel Clamp Attachment with Powered Rotation

The heavy duty clamp attachment from Packline lifts reels of material, such as paper, from the vertical position and rotates to the horizontal position, by means of powered motorised clamping and rotation.

The heavy duty clamp attachment is used for gripping loads by the diameter or circumference such as reels, rolls, drums, barrels etc.

Fitted with a quick release system, the clamp attachment can easily be attached to any heavy duty lifting machine with a flexline carriage assembly.

·         Heavy Duty Clamp Attachment

·         Lift capacity 250kg

·         Powered rotation

·         Powered clamping

·         Lifts reels of material from the vertical and rotates to the horizontal

·         Suitable for heavy rolls of material, such as rolls of paper

Packline Materials Handling offer a wide range of heavy duty lifting and handling equipment, designed to reduce injury to operating personnel, downtime and damage during transportation of stock from storage to processing machinery.

For further information on roll handling equipment with counterbalance or the full range of lifting and handling equipment, please contact Packline Materials Handling on +44 (0)1202 307700 or visit http://www.packline.co.uk

Lifting Equipment with Fully Powered Clamp Attachment

The clamp attachment with powered clamping arms and powered rotation is ideal for handling rolls of packaging material, as well as square or round drums.

The clamp attachment is suitable for gripping loads by the diameter or circumference such as reels, rolls, drums, barrels etc, and rotating to any position through 360 degrees.
Packline's range of attachments is fully interchangeable and can be easily fixed or removed from any model of ‘Compac’ roll lifter fitted with the unique quick release system.

·         Powered clamping arms.

·         Powered rotation.

·         Load capacity up to 250kg.

·         Fitted with Rotating rubberized rollers jaws to provide maximum grip and assist alignment.

·         Suitable for load diameters of up to 850mm as standard.

·         Built in slip torque mechanism to ensure correct gripping pressure is applied preventing over tightening and damage to load.

·         Suitable for agri-business and clean room environments.

·         Bespoke solutions available

Packline Materials Handling has been designing and manufacturing lifting and handling equipment since 1993. The Compac range of stainless steel materials handling equipment has established Packline as a leading supplier of quality roll and drum handling equipment for the food, drinks, dairy, pharmaceutical and medical processing industries worldwide.

For further information on the fully powered clamp attachment or the full range of lifting and handling equipment, please contact Packline Materials Handling on +44 (0)1202 307700 or visit http://www.packline.co.uk
