Tuesday, 25 November 2014

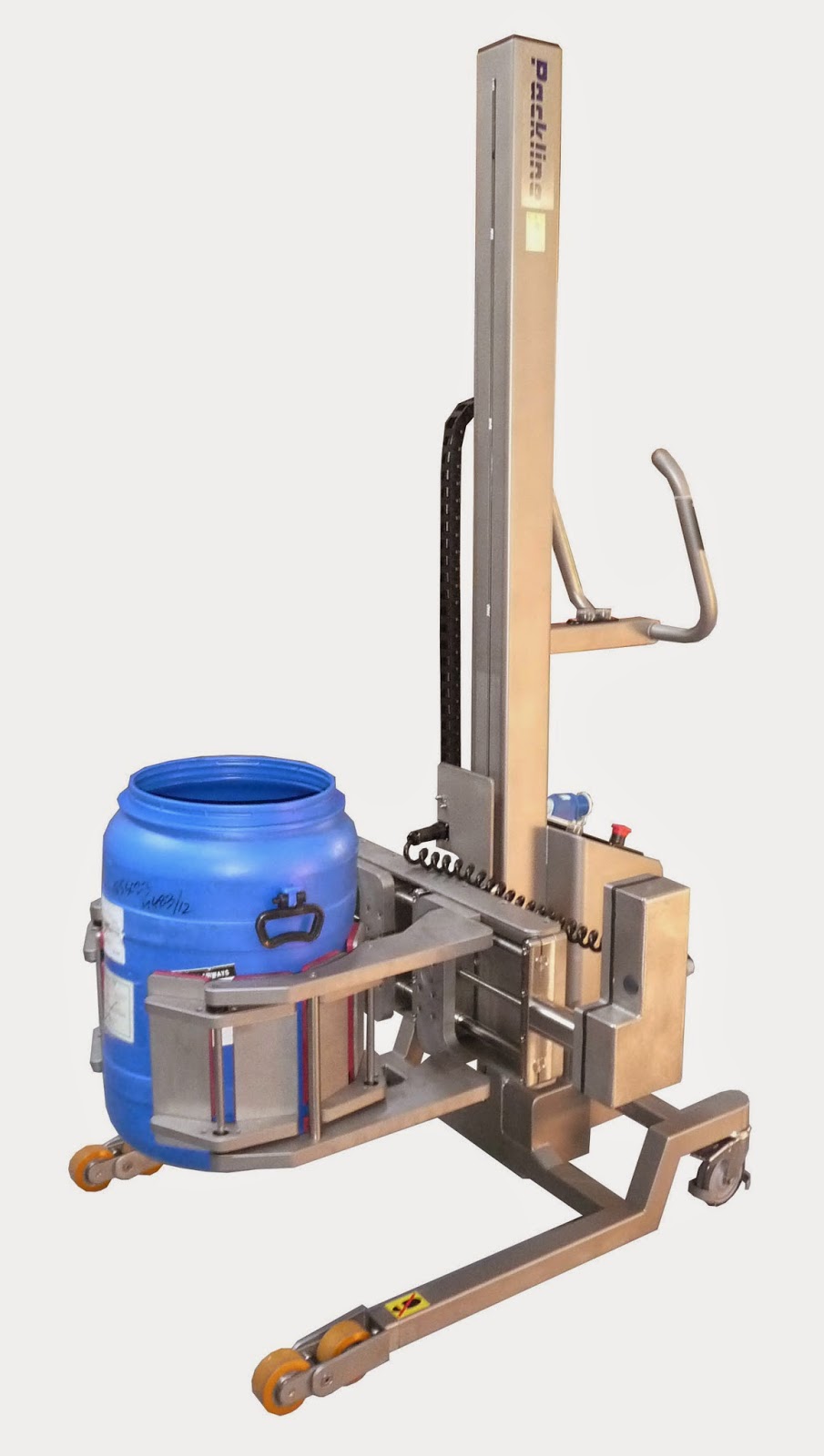

Stainless Steel Drum Handling Equipment with Motorised Clamp Attachment


The motorised drum handling equipment was designed and manufactured from stainless steel 304. Stainless steel was required to prevent corrosion due to chemical spills while in use. This drum handling solution is suitable for clean room environments such as food processing and pharmaceutical industries.

The clamp attachment was designed to handle drums from pallet to floor, floor to scales and back to pallet. The straddle legs on the lifter were specified to allow the drum to be lowered to the floor unobstructed.

The clamp attachment was also fitted with an IP65D Kit to the motor in order to allow it to be washed down and also stop any dust ingress.

Specifications:

Safe Working Load: 150kg

Load Centre (from the column): 554mm

Min. Drum Height: 300mm

Max. Drum Diameter: 650mm

Max. Drum Diameter: 350mm

Packline Materials Handling has been designing and manufacturing lifting and handling equipment since 1993. The range of stainless steel materials handling equipment has established Packline as a leading supplier of quality roll and drum handling equipment for the food, drinks, dairy, pharmaceutical and medical processing industries worldwide.

For further information on drum handling equipment with motorised stainless steel clamp attachment or the full range of lifting and handling equipment, please contact Packline Materials Handling (www.packline.co.uk) or, in the USA, contact Ultrasource LLC.

Tuesday, 14 October 2014

Large Adjustable Cradle Attachment for Lifting Long Reels of Material


This bespoke lifting attachment was designed to enable the operator to lift and move very long reels of film or foil, using a shaft through the core of the reel.

The reels were in excess of 200kg (440lb), meaning that the cradle attachment needed to be well supported in order to support the load being lifted.

In order to achieve this, stainless steel back plates and skid plates were added to the assembly to increase the rigidity and strength overall.

The attachment arms can support a shaft of up to 130mm diameter, giving the cradle attachment a large range of shafts that it is capable of lifting.

The arms are secured into place using two star knobs on the rear of the cradle attachment back plate. The star knobs are tightened to ensure that the arms can be held at the correct distance apart whilst moving the reel.

Specifications:

Safe Working Load: 230kg

Range of Widths: 450mm to 1800mm

Shaft Diameter: up to 130mm

Packline’s range of reel and drum lifting equipment is constructed of stainless steel, meaning these lifting solutions are suitable for clean room environments, such as those found in the food processing industries and pharmaceutical industries.

For more information on lifting and handling long reels, or the full range of materials handling equipment, please contact Packline Materials Handling in the UK, or Ultrasource LLC in the USA.

Thursday, 25 September 2014

Pallet De-stacking and Dispensing from Ferroplan and Packline


Packline Materials Handling are the sole UK distributors of the ‘Ferroplan’ pallet dispensing or de-stacking systems.
The pallet stacker / dispenser automatically stacks or de-stacks one pallet at a time. Also, it is possible to load or unload a whole stack of pallets at once.
These pneumatic or electric pallet dispensers are suitable for all pallet types.

Options:

Pallet Master LP; pneumatically operated
Stack, destack and store pallets in fully automated Pallet Master.
Handle pallets at floor level.
Made in Finland.
1 operating mode: automatic.
Stack or destack single pallets at a time.
Capacity LP 14 => 15 pallets / 500 kg; or LP 25 => 25 pallets / 1000 kg.
Colour RAL 3020



Pallet Master LP 14 EL; fully electric
Stack, destack and store pallets in fully automated Pallet Master.
Handle pallets at floor level.
Made in Finland.
3 operating modes:


  • Dispensing; always a pallet dispensed onto the floor level ready for pick up.
  • Filling; always a slot at the floor level ready for entering the pallet automatic.
  • Stack or destack single pallets at a time.
Capacity LP 14 EL=> 15 pallets / 500 kg.
Colour RAL 3020



Pallet Master LP 1.7; fully electric
Stack, destack and store pallets in semi-automated Pallet Master.
Handle pallets at floor level.
 Made in Finland.
2 operating modes:


  • Dispensing; required quantity of pallets will be dispensed onto the floor level for pick up.
  • Filling; always a slot for max. 7 pallets at the floor level ready for entering the pallets.
Start of cycle from OP by operator.
Capacity 17 pallets / 700 kg.
Overfilling sensor and safety fences included.
Colour RAL 3020.


Benefits of the pallet dispensers include:

·         Handle pallets at floor level

·         Improve employees' safety

·         Simple and safe pallet handling

·         Reduce pallet damages

·         Tidier storage area

For more information on the Pallet stacking and dispensing systems from ‘Ferroplan’, or Packline’s full range of materials handling equipment, please contact Packline (+44 (0)1202 307700, www.packline.co.uk/pallet_dispenser).



Wednesday, 24 September 2014

Roll and Drum Handling with Forward Tipping Clamp Attachment


New to Packline Materials Handling, the overhead horizontal rotation forward tipping clamp attachment can be used to lift drums or rolls up to a maximum safe working load of 50kg.

The clamp attachment allows the drum or roll to be lifted and rotated by 360 degrees horizontally and as well as vertically, via the forward tipping mechanism.

On the clamp attachment back plate there is an indexing plunger that, when disengaged, will allow the operator to rotate this back plate. This will re-orientate the drum or roll into the horizontal if required.

At each side of the forward tipping clamp attachment the pads are locked into place using lever indexing plungers. By releasing the plungers the drum can be easily manually rotated from the horizontal to the vertical or vice versa as required.

Specifications:

Safe working load (SWL): 50kg
Minimum Diameter Load: 230mm
Maximum Diameter Load: 600mm

Packline Materials Handling are able to provide bespoke lifting and handling solutions for materials handling issues involving rolls, reels and drums; by creating new concepts or tailoring existing lifting and handling equipment to meet specific requirements.


For further information on on drum handling with the forward tipping clamp attachment or the full range of lifting and handling equipment, please contact Packline Materials Handling on +44 (0)1202 307700 or visit http://www.packline.co.uk; or contact our USA distributor Ultrasource LLC Roll Lifting.


Wednesday, 17 September 2014

Heavy Duty Rotating Tray Lifting Attachment for Lifting Rolls


New to Packline Materials Handling, the heavy duty rotating tray lifting attachment is suitable for lifting rolls of film or foil up to a required height, rotating the roll and then loading onto processing machinery as specified.

This heavy duty rotating tray lifting solution is designed to lift heavy rolls and rotate them into place as required. The lifter is designed to cope with the additional weight of the loads being handled.

The stainless steel, aluminium and delrin construction of the rotating tray lifting attachment ensures structural stability and the ability to lift the heavier rolls or reels. This construction is suitable for food and pharmaceutical production environments.

Specifications:

Safe working load:  up to 265kg

Attachment mass:  32.5kg

Maximum roll diameter:  600mm

Maximum roll length: 700mm

Smaller versions are available if required.

Packline Materials Handling are able to provide bespoke lifting and handling solutions for materials handling issues involving rolls, reels and drums; by creating new concepts or tailoring existing lifting and handling equipment to meet specific requirements.

For more information on the heavy duty rotating tray attachment for lifting rolls, or the full range of materials handling equipment, please contact Packline Materials Handling (+44 (0)1202 307700; www.packline.co.uk) or our USA distributor Ultrasource LLC Roll Lifting Equipment.


Monday, 21 July 2014

Roll Handling with Single Spindle Hybrid Lifting Attachment


This roll handling solution with the vertical spindle hybrid lifting attachment uses a single spindle design to lift a roll of film or foil in the horizontal position, but also the technology from the vertical spindle to grip the inside of the core, to ensure that the roll cannot slide off the lifting attachment.

This solution is suitable for clean room environments such as those found in food processing and pharmaceutical industries.

The vertical spindle attachment uses a technology which allows the core of a roll to be gripped. The roll can then be lifted and rotated as required.

The single spindle attachment uses a similar concept; however the roll may only be lifted in the horizontal position and moved the same orientation.

This lifting solution is operated with the use of a remote control pendant to allow the operator to stand to the side of the lifter in order to raise the reel to the appropriate height.

This lifting attachment allows the operator some additional reassurance when lifting a reel on a single spindle that the reel is less likely to slide or move.

Specifications

Safe Working Load:  100kg (variations can handle up to 200kg if required).

Reel Core size:  70mm, 76mm or 152mm as standard (other variations are available).

For more information on roll handling with single spindle hybrid lifting attachment or the full range of materials handling equipment, please visit Packline Materials Handling.

Thursday, 26 June 2014

Ultravac 500 Vacuum Packaging Machine


Ultravac® is the best-selling chamber machine in the USA, now available in the UK via Packline.

The Ultravac machines, known for their quality and robust construction, are manufactured by Ultrasource (formerly Koch Equipment) in the USA. The Ultravac chamber machines are the most popular choice for vacuum packaging in the USA, available in the UK exclusively through Packline.

The Ultravac vacuum packaging machines produce high quality packages and are ideal for use by small to large sized packers and processors who operate in a production environment that calls for packaging versatility.

Move up from a tabletop machine and double the package throughput.

The Ultravac 500 is equipped with two seal bars and one large capacity chamber, in a single machine.

The Ultravac 500 more than doubles the packaging production of tabletop vacuum packaging machines. Two 18" (45.7cm) seal bars, one located on either side of the chamber, provide 36" (91.4cm) of usable sealing bar length. Where there is restricted floor space but higher package throughput required, the Ultravac 500 is the ideal solution.

For more information on the Ultravac 500 vacuum packaging machine or the full range of vacuum packaging chamber machines contact Packline.


Monday, 28 April 2014

Horizon Glass Handling Truck with Auto-Drive


The ‘Horizon’ glass handling truck with auto-drive is a glass lifter designed for in-shop use to assist glass workers and glaziers to unload, rotate, transport and lay large sheets of glass flat onto a cutting table or tempering line.

This glass lifter has a lifting capacity of 300kg / 660lb.

The ‘Horizon’ auto-drive glass lifter has a 12 volt battery powered vacuum pump and 2 hydraulic rams.

This glass handling truck will lift and tilt glass to the horizontal. It will allow one operator to lift glass or an IGU (insulated glass unit) form rack or truck, then index the glass to the horizontal and slowly and precisely lower the glass onto a table or frame.

The ‘Horizon’ glass lifter allows one or two operators to handle the glass, rather than four to six as previously required, and with greater safety.

This glass lifter is ideal for setting DGUs (double glazed units) into a window frame to create a perfect seal.

The glass handling truck uses a battery powered rear drive wheel. The lifter is also equipped with powered side shift, which allows for up to 200mm movement to the left and right by use of an actuator.

Specifications:

Lifts glass from vertical to horizontal

Lifts up to 300kg / 660lb vertically

Lifts up to 200kg / 440lb horizontally

‘Onloads’ trucks and edgework machines

Lifts DGUs and glazed windows

Rotates glass 360 degrees

One man operation

Lifts glass 2440mm x 3660mm / 96” x 150”

Hydraulic rams and lifters

DC powered vacuum pack

Battery operated rams

Small footprint

Easy operation

For more information on the ‘Horizon’ glass lifting truck or the full range of Quattrolifts mobile glass handling trolleys and trucks please visit http://www.packline.co.uk/quattrolifts_glass_lifting.html.



Monday, 7 April 2014

Pallet Lift and High Lift Trucks


Packline are distributors for Logitrans Denmark materials handling equipment.

The Logitrans range includes stacker trucks, high lift pallet trucks, pallet trucks, also available in stainless steel models. The range of stacker trucks is available with bespoke attachments suitable for reel and drum handling.

The Logitrans range is available in a wide range of frame and leg configurations along with mechanical to powered lift, and models incorporating powered propulsion. The machinery's flexible design, coupled with a full range of lifting attachments, provide a comprehensive solution for handling loads up to 1200kg.

Packline Materials Handling offer a wide range of heavy duty lifting and handling equipment, designed to reduce injury to operating personnel, downtime and damage during transportation of stock from storage to processing machinery.

As well as designing and manufacturing stainless steel reel and drum lifting equipment, to complement our range of materials handling solutions, Packline are also distributors for Logitrans Denmark Heavy Duty Lifting and Handling Equipment. Packline manufacture Heavy Duty lifting attachments for the Logitrans range of lifters.

The Logitrans range of Lifting and Handling Equipment includes Stacker Trucks, High Lift Pallet Trucks, Pallet Lift Trucks, also available in stainless steel and ATEX rated models. The range of Stacker Trucks is available with Bespoke Lifting and Handling attachments suitable for Reel, Roll, Drum and Barrel Lifting and Handling.

The Logitrans range is available in a wide range of frame and leg configurations along with mechanical to powered lift, and models incorporating powered propulsion.

The machinery's flexible design, coupled with a full range of lifting attachments, provide a comprehensive solution for handling loads up to 1200kg.

Demonstration models are available for use on-site or in Packline’s showroom.

For more information or a quotation, call us on 01202 307700 or email info@packline.co.uk.

Monday, 17 March 2014

Lifting Equipment with Caged Platform Attachment


The lifter with caged platform attachment allows a load to be lifted safely and securely up to the required height where the contents can be unloaded.

Manufactured from stainless steel, this lifter is suitable for clean room environments, such as those found in pharmaceutical and food processing industries.

The stainless steel mesh ensures that the load being lifted is safely containing within the caged platform.

The dual column lifter means that the load can be lifted to much greater heights for unloading, keeping the load secure and the lifter stable at height.

The remote control means that the operator may stand to the side of the lifter whilst operating both the main column and dual column, enabling ease of use and a clear line of sight to the contents being loaded or unloaded from the lifter.

This lifting equipment is available as a mobile solution as well as a static ‘bolt down’ version.

Specifications:

·         Safe Working Load: 125kg

·         Platform Size: 700mm width x 680mm length

·         Attachment Mass: 38.5kg

For more information on Packline’s stainless steel lifting and handling equipment please visit Packline Materials Handling.






Tuesday, 11 February 2014

Roll Handling with the Fixed Cradle Arm Lifting Attachment


The fixed cradle arms lifting attachment allows rolls of material already mounted with a mandrel to be lifted to a specific height and loaded onto a processing machine along the production line if required.

The dual column incorporated into the roll lifter enables the roll to be lifted to much greater heights for loading and unloading, meaning the roll can be loaded onto considerably higher machinery.

The remote control enables the operator to stand to the side of the lifter whilst operating both the main column and dual column, enabling ease of use and a clear line of sight to the roll being loaded or unloaded from the processing line.

This roll handling equipment is available as a mobile solution as well as a static ‘bolt down’ version.

Specifications:

·         Safe Working Load: 60kg

·         Attachment Mass: 25kg

For more information of the roll lifter with the fixed cradle arm attachment or the full range of materials handling equipment visit Packline Materials Handling.





Monday, 27 January 2014

Vacuum Lifting Equipment with the Two-Joint Swing Arm


The vacuum lifter with the two joint swing arm attachment enables users to repeatedly lift and accurately place a wide variety of loads including paper and plastic sacks, boxes, sheets of material, crates and cartons, stone and building materials.

The bags or sacks can be split and opened without losing suction from the vacuum lifting head.

An electrically driven vacuum pump provides both lifting and suction functions and a wide range of quickly interchangeable vacuum heads is available.

The two joint swing arm attachment can continuously rotate, and the slide mechanism on the hinged arm gives a full range of movements.

The vacuum lifting heads have a 'fingertip' control bar so the operator uses minimum effort to move heavy loads.

Safety is of paramount importance, and in the event of a power failure, the load is gently lowered to the ground before the suction head will release.

The vacuum lifters can be specified in stainless steel for use in the food, drinks and pharmaceutical industries.

With a remotely installed power pack, the vacuum lifters can also be installed in hazardous areas.

Specifications:

Maximum Standard Safe Working Load = 100kg
Maximum Standard Arm Reach = 2500mm
Standard Lift Height from Floor Mounted = 1750mm
Standard Lift Height mounted on Counterbalance = 1930mm
Work Area = 360 degrees
Standard Total Height, Floor Mounted = 3100mm
Standard Total Height mounted on Counterbalance = 3280mm
Vacuum Pump = -0.45 bar 5.0 A, 3 x 400 V/50 Hz

For more information on the Two Joint Swing Arm Vacuum Lifter or the full range of materials handling equipment, please contact Packline Materials Handling.

Tuesday, 21 January 2014

Actuated Roll Lifting Equipment with Rotating Tray Attachment


The actuated roll lifter incorporates a central lifting column whilst maintaining a compact and functional design.

This bespoke roll lifting solution allows a lifting truck to carry a roll underneath a conveyor belt with a restricted height of 750mm and then lift it above its own height to unload.

The telescopic column is operated using a pendant control with two push buttons. The pendant control is mounted to the side of the truck for easy storage.

Within the unit, a control box is used to operate the column. The control box will sound an alarm when the batteries reach 17-18v DC and the unit requires recharging.

This roll handling solution incorporates a rotating tray attachment. However, a number of different lifting attachments can be mounted to this lifting unit including a single spindle, twin spindle, cradle attachment or platform attachment.

The roll lifter is constructed from aluminium, with a stainless steel chassis and lifting attachment, meaning that the actuated lifter is suitable for clean room environments such as those found in the food and pharmaceutical industries.

Specifications:

Safe Working Load = 40kg

Overall Height = 750mm (when in lowered position)

Maximum Roll Diameter = 390mm

Minimum Roll Length = 420mm

Lifting Height Range = 375mm to 955mm

Lifting Speed = full lift of 580mm; 40 seconds.

For more information on the actuated roll lifter with rotating tray attachment or Packline's full range of materials handling equipment please visit Packline Materials Handling.


Tuesday, 14 January 2014

The ‘Express’ Glass Lifting Trolley


The ‘Express’ glass lifting trolley is designed to allow a glazier to unload, transport and install large plates of glass. This glass lifter has a lifting capacity of 150 Kg. It can rotate glass measuring up to 3000 mm. The glass lifting trolley has adjustments to allow for side and top pocket glazing.

Handling glass plates and windows can create health and safety issues due to the weight and dimension of the plates and the uneven grounds of construction sites. The methods to deliver plates haven’t changed in decades even with windows now getting heavier and larger.

The Express Glass Lifter is an innovative, small portable lifter that allows one man to move plates weighing up 100kg or two men up to 150kg. The compact Express glass lifting trolley is loaded onto a truck in two 15kg parts and easily assembled in under a minute.

Once assembled, this glass lifter can unload plates off the truck and then transport the plates and windows on site. The large 330mm pneumatic wheels allow for travelling over rough grounds on construction sites. The wheelbase can be adjusted from 54 cm to 80cm allowing for narrow walkways on-site.

Two additional features of the Express allow the plate or window to be rotated 360 degrees and secondly the operator can also index the glass allowing him to move through standard 90cm wide doorways.

For more information on the Express Glass Lifting Trolley or the full range of glass lifters please visit Packline.

Tuesday, 7 January 2014

Mobile Glass Lifting Trolley


The ‘Mule’ glass lifting trolley is designed to assist glass workers to unload, rotate and transport large plates of glass in-house. It has a lifting capacity of 300 Kg. This glass lifting trolley can rotate glass measuring up to 4400 mm. The Mule glass lifter has a 12 volt battery powered vacuum pump.

The Mule glass lifter allows glazing shops to handle heavy glass on and off edgework machines, glass dollies and trucks with greater safety and ease. The Mule glass lifter has a lifting capacity of 300 Kg and can be operated by one person.

The glass lifting trolley can rotate glass 360 degrees allowing long and heavy sheets of glass to be loaded onto an edgework machine.

The Mule is operated by a portable DC vacuum pump applying vacuum to four 11 inch Woods cups. The vacuum pump arms can be swivelled allowing for long narrow plates to be handled safely.

  The Mule complies with all relevant European Directives.

  Benefits of using The Mule:

  •Used as an alternative to an overhead crane to handle heavy sheets of glass

  •Save money as the Mule is about one quarter the cost of a basic overhead crane

  •Reduce manpower when rotating plates of glass needed for edgework machines

  •Reduced health and safety risks due to reduced hazardous manual handling of glass

  •Improved productivity as less people are required to do the same work

  •Use in areas of the glazing shop not serviced by an overhead crane

  •Safely load trucks outside the glazing shop

For more information on the range of glass lifting trolleys visit http://www.packline.co.uk/quattrolifts_glass_lifting.html.


Pallet Dispensing and Stacking System, Q Pall-Evator


Packline are UK distributors of the 'Q Systems' 'Pall-Evator' pallet stacking systems. Unlike most other types of pallet stackers and dispensers the Q Pallet dispenser doesn’t require compressed air, only a power supply is needed. Therefore these pallet dispensers can be placed anywhere, the only requirement is a power point nearby.

The pallet dispenser automatically stacks or de-stacks one pallet at a time. One push on the control panel changes the function from stacking to de-stacking mode. Also, it is possible to load or unload a whole stack of pallets at once.

These electric pallet dispensers are suitable for all pallet types.

The range of pallet stacking systems include the standard ‘Pall-Evator’, the ‘Pall-Evator’ for 1/2-Euro pallets, the ‘Pall-Evator’ Double Deep to load or unload at once 2 stacks of pallets placed end to end; and the ‘Pall-Evator’ Tower. To complete the range, the Pallet Dispenser IN-LINE system is designed for integration into a conveyor system.

Electric pallet stackers and de-stackers are available for all pallet types. Benefits include:

·         Optimised pallet flow

·         Cost reduction on pallet handling

·         Time saving per pallet

·         Increased efficiency

·         Less truck driving

·         Improved indoor climate

·         No manual pallet handling

·         Improved working conditions

For more information on the Q Pall-Evator Pallet Dispensing Systems please visit http://www.packline.co.uk/pallevator_pallet_dispenser.html.
