Quattrolifts ‘Nomad’ Glass Lifter from Packline Materials Handling

The Quattrolifts ‘Nomad’ Glass Lifter, from Packline Materials Handling, is designed to assist glaziers to unload, transport and install glass safely.

The ‘Nomad’ Glass Lifter can rotate glass measuring up to 4400mm / 180”.

This glass lifter has adjustments to allow for side and top pocket glazing.

Features:

• Prevents breakages and damage to glass in transport and installation.
• Protects the workers whilst carrying glass.
• Lifts and Rotates long plates of glass.
• Loads and unloads glass onto and off an A-frame truck.
• Transports and installs glass into most frames.
• Lifts glass weighing up to 400kg (880lbs) (4500mm wide x 3600mm high).
• Requires only 2 people to transport and install glass safely.
• Can be easily assembled and transported via a mid-size van or A-frame truck.
• Transports glass over uneven ground.
• Rotates glass from horizontal to vertical.
• Portable and easy to use.
• Increases productivity.
• Reduces health and safety risks.
• Suitable for use on construction sites.
• Installs glass into most frames.


For more information on the Quattrolifts ‘Nomad’ Glass Lifting Equipment please contact Packline Materials Handling.

Forward Tipping Drum Rotator from Packline

The Forward Tipping Drum Rotator has been designed to lift and rotate drums, and allow the contents to be dispensed in a controlled manner.

This Drum Handler is suitable for steel open top or tight head drums with rolling rims and a capacity of up to 205 litres.

The drums are clamped in a steel hoop with an adjustable clamp and locking pin.

The forward rotation of the drum lifter is provided by a hand wheel operated manual gearbox and this provides the operator with full control during the dispensing process.

The drums are clamped between the rolling rims via an adjustable over-centre chain and locking pin.

This drum rotating attachment is suitable for many industries including chemical, printing, oil, gas, automotive and construction.

As with all Packline equipment, the attachment is backed up by a full bespoke design service ensuring the right solution can be made to suit any type, make or size of drum.

Technical Specification:

Attachment Lift Capacity: 250kg / 551lbs (maximum) load.

Attachment Mass: 70kg / 154lbs.

Main Materials: Mild steel, painted.

For more information on the forward tipping drum rotator, or the full range of lifting and handling equipment, please contact Packline Materials Handling.

Quattrolifts Glass Lifting Harness

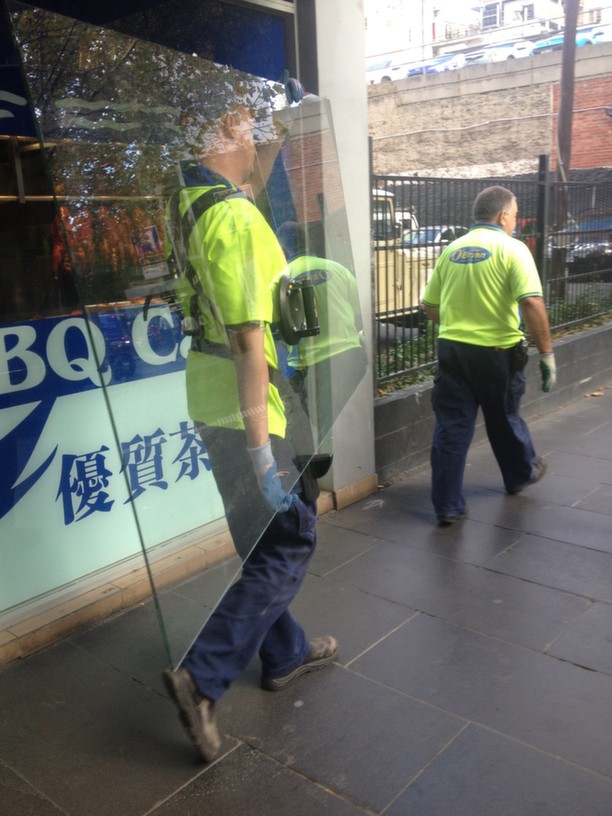

The Quattrolifts Glass Lifting Harness, from Packline, makes moving large panes of glass easy and quick, whilst maintaining safety.

The Glass Lifting Harness caters for tradesmen carrying glass manually. This lifter allows one person to carry the glass, where normally two people would be required.

This is a harness that is designed to support up to 50kg and allows the operator to transport the glass without the need to hold the weight of the glass while walking.

Both the straps and the glass support are fully adjustable to cater for all persons. Optional padded shoulder supports are also available.

Features:
Safe Working Load (SWL): 50kg / 110lb.
One man operation.

For more information on the Quattrolifts Glass Lifting Harness, or the full range of Glass Handling Equipment, please contact Packline Materials Handling.

Packline ‘Compac’ Lifter with Platform Attachment for Lifting and Handling Sacks of Material

The bespoke dual column lifter, from Packline, was designed to lift sacks of ingredients from a pallet to a mezzanine floor with a height of 2.8m.



Packline’s standard ‘Compac’ Lifter is limited to lift to 2.5m as standard for safety and practicality reasons.



However, in this instance, a platform attachment was needed to reach higher than 2.5m.



The requirement was to lift 25kg sacks of material up to a mezzanine floor; the operator then opened the sack when stood up on the mezzanine floor.



To achieve this requirement, a dual column has been fitted to the ‘Compac’ lifter in order to reach a height of up to 2.8m from the platform attachment.



Simple push button controls on a mounted pendant remote control allow the operator to lift the sacks using the main lifter column first, or by the dual column separately.



Once at the required height, the sacks can be taken from the platform attachment and placed onto the mezzanine, or another truck, for example.



The stainless steel structure makes this lifting solution suitable for the food and pharmaceutical industries.



Extra leg supports were added to the ‘Compac’ Lifter to ensure maximum safety levels at height, and an efficient and manoeuvrable design for the customer.



Technical Information:



Safe Working Load (SWL): 100kg (220.46lbs).



For more information on the Dual Column Lifter for handling sacks, please contact Packline Materials Handling.

Stainless Steel Stacker Truck with Cradle Attachment for Lifting Euro-Bins

The stainless steel heavy duty stacker truck, from Packline Materials Handling, is fitted with a cradle attachment specifically designed to lift standard Euro-Bins. These bins often need lifting to height allowing for the contents to be more easily emptied; as well as enabling the bins to be stacked or stored at height.

Euro-Bins are used widely in food processing industries to store and transport ingredients or products. This stainless steel lifter is an ideal solution for this application.

The stainless stacker truck has electric lift and manual propulsion.

The stacker truck is constructed from stainless steel, ensuring suitability for clean room environments and food industries. Mild steel painted trucks are also available.

This stainless stacker can lift to 3 metres.

The lifter can handle up to a load weight of 1000kg.

For more information on the stainless steel stacker truck with cradle attachment for lifting Euro-Bins, please contact Packline Materials Handling.

Packline Quattrolifts Express 150 Glass Lifter

The Express 150 glass lifter is designed to allow glaziers to unload, transport and install sheets of glass.

This glass handling trolley has a lifting capacity of 150kg (330lb).

The glass lifter can rotate glass measuring up to 3000mm (120”), with adjustments to allow for side and top pocket glazing.

The Quattrolifts Express 150 glass lifting trolley is an innovative and small portable lifter that allows one person to move sheets weighing up to 100kg (220lb) or two people to move up to 150kg (330lb).

The ‘Express 150’ is loaded onto a truck in two 15kg (33lb) parts and easily assembled in under a minute.

Features include:
One person can lift 100kg (220lb).

Two people can lift 150kg (330lb)

Rotates sheets up to 3000mm (120”)

The Express 150 weighs less than 35kg (77lb)

Moves inside lifts.

Moves through doorways.

Travels over construction sites.

Optional side-shift for glass installation.

For more information on the Quattrolifts Express 150 Glass Lifting Trolley contact Packline Materials Handling.



Bespoke Lifting Clamp Attachment with Tapered Pads for Handling Machined Parts

The lifting clamp attachment with tapered pads has been designed to handle specifically machined parts from singular billets of material.

The clamp’s tapered pads have been modelled and then manufactured to fit to the exact diameters and shape of the part being lifted, making this clamp a bespoke piece of lifting and handling equipment.

Geared rotation allows the load to be rotated a full 360 degrees if required.

The gripping mechanism includes a fitted torque unit to ensure the part being lifted and the clamp attachment are not damaged in any way.

New blue FDA Nitrile pads have been fitted in order to sufficiently grip the part whilst also being acceptable in most industries.

A fully welded stainless steel 304 frame for the clamp arms mean it is structurally capable of weights up to 275kg.

Technical Information:

Safe Working Load (SWL): 275kg (606.27lbs).

Part Diameter: 450mm (17.72”); Bespoke diameters are available on request.

Attachment Mass: 111kg (244.71lbs).

For more information on the bespoke clamp attachment with tapered pads for lifting machined parts, or the full range of handling equipment, please contact Packline Materials Handling.



Stainless Steel ‘Logi-Tilt’ Lifting Equipment

The stainless steel ‘Logi-Tilt’ LT-TE Barrel and Drum lifting equipment has been developed for clean room environments where hygiene is of extreme importance; for example, in the food and pharmaceutical industries.

This design focusses on the safety and ergonomic working conditions of the operator. The ‘Logi-Tilt’ Lifter can tilt boxes and crates, as well as barrels and drums, up to 90 degrees, meaning that it is not necessary for the operator to bend down or stretch up to reach components in the crate or box being handled. This applies to both standing and sitting work positions.

The ergonomically correct handle of the ‘Logi-Tilt’ lifting equipment ensures that the operator has a comfortable relaxed hold.

Rigorous testing of the lifter ensures a high quality and safe design and manufacture.

For more information on the Logi-Tilt stainless lifter or the full range of handling equipment, please contact Packline Materials Handling.

Reel Handling Equipment with Extended Vertical Spindle Attachment for Handling Longer Reels

New to Packline is the reel lifting equipment with extendedvertical spindle attachments, available in widths of 3” or 6”.

The extended 3” or 6” spindle attachments allow much longer reels to be lifted.

The rollers on the attachment mean that the transition from the spindle attachment to the processing line mandrel is much easier and smoother.

The additional length of the attachment ensures that the load centre of the reel is still on the length of the spindle.

Geared rotation allows the operator to re-orientate the reel just by turning the hand-wheel.

This lifting solution enabled the operator to pick up large reels, rotate them and then raise them above head height in order to load the reels onto a processing line.

Most reel sizes can be catered for and therefore each application is designed and manufactured individually to ensure the required spindle attachment is supplied.

Specifications 3” spindle:

Maximum capacity: 250kg / 551.16lbs (with appropriate leg length).

Load centre: 722mm / 28.43 inches from front of column.

Attachment mass: 43kg / 94.80lbs.

Main materials: stainless steel 304, aluminium 6082/T6, Delrin Polypropylene, brass, phosphor bronze.

Specifications 6” spindle:

Maximum capacity: 175kg / 385.81lbs (with appropriate leg length).

Load centre: 783mm / 30.83 inches from front of column.

Attachment mass: 43.5kg / 95.9lbs.

Main materials: stainless steel 304, aluminium 6082/T6, Delrin Polypropylene, brass, phosphor bronze.

For more information on reel handling equipment with extended vertical spindle attachment, please contact Packline Materials Handling.

Drum and Barrel Handling Equipment in Stainless Steel with Upright Front Castors

Packline’s Drum and Barrel Handling Equipment is a proven and tested solution for most manual handling applications within industries such as food and pharmaceutical.

The standard lifter’s front castors are mounted facing forwards and allow for easy movement. The rocking pallet wheel assembly, when mounted, allows for easy access to the pallet.

The rear castors are braked and supplied with a foot guard to protect the operator.

This barrel handling equipment was needed in an environment where once loaded, the lifter needed to be pushed up a slight incline and onto a flat surface. For this reason, the front castors are mounted facing downwards and extensions added to the rear castors.

This enabled the barrel or drum lifter to ‘rock over’ the incline and onto the flat surface.

The barrel handler’s column height was decreased to 1700mm to ensure that the lifter was suitable for a specific confined space, enabling the lifter to pass through a low height doorway.

It was important that the lifting attachment would not allow the load to swing forwards and backwards in any way. This would cause the lifter to become unstable, hence the clamp attachment was designed as a fixed solution.

Specifications:

Safe working load (SWL): 150kg or 300kg.

Charging Supply: 240v, 110v or 110v USA.

Leg Length: 350mm up to 1000mm.

Leg Width: 500mm up to 1000mm.

Column Height: 1100mm up to 2500mm.

Operation: push buttons or remote control.

For more information on barrel and drum handling equipment in stainless steel contact Packline Materials Handling.



The Cradle Attachment for Lifting Very Long Reels

The extra wide cradle attachment is designed to lift very long reels already mounted onto a mandrel.

The stainless steel assembly means that the attachment is strong enough to lift a load up to 90 kg. The reel is lifted with the mandrel already inserted, meaning that it is necessary for the attachment cradle arms to straddle the reel itself.

A ‘bolt on block’ in the centre of the cradle attachment was added in order to reduce the risk of pivoting by the attachment when loaded with the reel.

The lifter allows the reel to be lifted up to the necessary working height and moved into position. The mandrel can then be unloaded into the machine.

This lifter frame has longer legs than are used as standard in order to add stability to the lifter when the reel is lifted to its highest position.

Specifications:

Safe Working Load (SWL): 90kg (198.42lbs approx.)

Attachment Mass: 53.5kg (117.95lbs approx.)

Construction: Stainless Steel 304, Aluminium 6082 T6

For more information on the cradle attachment for lifting very long reels of material, please contact Packline Materials Handling.

Automatic Scissor Drum Handler (SG-1)

Drums that are structurally strong can now be lifted from their top rim.

The SG-1 automatic scissor drum handler attachment is raised above the drum in the locked open position, and then lowered onto the drum.

Once in contact with the drum, the attachment will automatically close to grip the rim of the drum, enabling the drum to be lifted as required. The drum handler will release the drum when lowered to the ground again.

This drum handler will lift all open and tight head steel drums, as wells as plastic ‘L’ ring drums. A customised version is available to lift open top plastic drums and Mauser drums.

The SG-1 drum handler is available in mild steel with a hard wearing powder coat finish, or if required, stainless steel 304.

Packline can supply a lifting truck which can support the SG-1 drum handling attachment. The SG-1 can also be hung from a hook or crane hoist on a fork lift truck.

Specifications:

Safe working load (SWL): 500kg.

Material: mild steel powder coated or stainless steel 304.

Weight of unit: 20kg.

For more information on the Automatic Scissor Drum Handler please contact Packline Materials Handling.

Handling Large Reels with the Clamp Attachment and ‘Side Shift’ Feature

The clamp attachment for handling large reels has been designed with the ability to shift the entire clamp sideways, left or right as required, and by a specified distance.

The arms of the clamp were offset from the centre of the clamp so that they could fit into confined spaces. Once in place, these clamp arms were used to clamp a shaft and remove it from the press.

Rotation of the clamp can be carried out manually with a hand-wheel or via a motor and using a remote control.

Sideways shifting ensures that the load can be moved into place and then accurately shifted left or right to align it with a machine mandrel for example.

Specifications:

Maximum Capacity: Up to 250kg (551.16lbs)

Load Centre: Up to 1056mm (41.58 inches)

Maximum Diameter: 670mm (26.38 inches)

Minimum Length: 290mm (11.42 inches)

Attachment Mass: 175kg (max) (385.81lbs)

For more information on the clamp attachment with the side-shift feature for handling large reels please contact Packline Materials Handling.



Handling and Rotating Reels of Film or Foil with the Tray and Core Gripper Attachment

The tray attachment with core gripper attachment has been designed to allow the operator to lift a reel from the vertical position, rotate to the horizontal position, followed by rotation of the reel via a rotating tray.

Constructed from stainless steel this reel handling equipment is suitable for clean room environments such as food and drinks processing, and pharma industries.

The lifting attachment uses a frame of box section in stainless steel for structural stability, and an actuator to grip the core of the reel, with a detachable pin, which is mounted to the side of the lifter.

The actuator and pin can be moved away from the reel when it is in the horizontal position on the rotating tray. This allows the operator to move the tray into the necessary position for unloading onto a mandrel or processing machinery, for example.

The actuator is controlled using a remote control pendant, as is the lift and lower mechanism of the lifter.

Specification:

Safe Working Load (SWL): 50kg / 110.23lbs

Attachment Mass: 52kg / 114.64lbs

Maximum Reel Diameter: 350mm / 13.79 inches

Maximum Reel Length: 260mm / 10.24 inches

For more information on handling and rotating reels of film or foil with the tray and core gripper attachment please contact Packline Materials Handling.

Pallet Racking Drawers

Pallet racking drawers are a convenient and efficient way to store pallets on racking and to be able to access the contents quickly and easily.

These pallet racking drawers are designed to improve ergonomics and productivity from pallets.

Features and Options:

·         Allows picking from three sides of the pallet when pulled out on the drawer, utilising the all the space available.

·         A range of accessories are available including a locking mechanism, and a steel sheet for mounting items without a pallet.

·         Standard colour is Blue (RAL 1050) (other colours are available on request).

·         Bespoke design enables the correct pallet drawer to be selected compatible with the space available, the size of the pallet and how it is to be fitted into the environment (floor mounted or pallet racking).

Specifications:

Safe Working Load (SWL): 1000kg (uniform load).

Pallet Sizes: 800 x 1200, 800 x 1225, 1000 x 1200 (in either orientation).

Construction: Mild Steel Powder Coated.

For more information on pallet racking drawers please contact Packline Materials Handling.



Stainless Steel Platform Attachment for Lifting Trays of Meat in the Food Processing Industries

The stainless steel platform lifting attachment has been designed with functionality and weight saving in mind. It is designed to lift trays of meat onto a trolley. The trolley is then pushed into an oven for cooking.

Made from one single sheet of Stainless Steel 304, the platform attachment is incredibly strong and capable of lifting large loads with ease.

The platform construction enables the lifting equipment to gain access to the trolley as well as adding strength and stability when the load is lifted, eliminating any bowing or distorting in the material.

Stop pins at the rear of the platform stop any load from sliding backwards against the column of the lifter. These can also be used to fit a cover onto the top of the platform to stop any residue dropping down through the cut outs.

The cut-outs were added in order to allow residue from the meat to run off the product whilst being transported, but as stated above, in some cases, this is not acceptable in the environment and so a covering plate may be added.

Specifications:

Safe Working Load (SWL): 90kg (198.42lbs)

Platform Base Size: 850mm x 740mm (other sizes available) (33.47 x 29.13 inches)

Material: Stainless Steel 303/304

For more information on the stainless steel platform lifting attachment for transporting trays of meat in the food processing industries please contact Packline Materials Handling.

Fixed V-Tray Attachment for Lifting Longer Reels

The fixed V-Tray attachment has been designed specifically to lift very long reels of material such as film or foil, which are often too long to be handled using the core.

Constructed from stainless steel, the tray attachment is strong enough to lift weights of up to 65kg and a roll as long as 2700mm.

This lifter is suitable for the following industries: food processing, beverages, pharmaceutical, medical, fast moving consumer goods (FMCG).

The V Tray lifting attachment incorporates two bolted down V sections which allow the reel to sit between them; ensuring the reel does not rock backwards or forwards and therefore remains stable and on the tray attachment.

The lifter itself has been designed with longer and wider legs to ensure stability and manoeuvrability. The stabilised carriage also ensures ease of use.

Specifications:

Safe Working Load (SWL): 65kg / 143.3lbs

Roll Diameter: 410mm / 16.14 inches

Roll Length: 2700mm / 106.30 inches

Attachment Mass: 28kg / 61.73lbs

For more information on the fixed V-Tray attachment for lifting longer reels, or the full range of lifting and handling equipment, please contact Packline Materials Handling.

Cradle Lifting Attachment with Bespoke Welded Arms for Lifting Tools and Die Blocks

The cradle lifting attachment from Packline, with bespoke designed welded arms, is designed to lift specifically sized tools or die blocks. Constructed from stainless steel, this lifting equipment is suitable for clean room environments.

Constructed from stainless steel welded assembly, this lifting attachment can lift loads to 150kg (330lbs).

The tool being handled has precise sections from which it was to be lifted, hence the cut outs in the cradle lifting attachment were added.

The ‘V’ shape ensures the tool can be balanced between the two arms for working on, servicing, or for placing into a machine or onto a work bench.

The lifter itself was designed to ensure usability and stability. A top adjustable micro-switch was fitted to stop the cradle attachment from being raised up too high. Leg stops were also added so that the lifter could be positioned in the correct alignment for loading and unloading of the tools.

Specifications:

Safe Working Load (SWL): 150kg (330.69lbs)

Attachment Mass: 17kg (37.48lbs)

Construction: Stainless Steel 304

For more information on the cradle lifting attachment with bespoke welded arms, or the full range of lifting and handling equipment, please contact Packline Materials Handling.
